ASTM F88 ASTM F904 Tensile Test Equipment Tensile Strength Tester

Name: ASTM F88 ASTM F904 Tensile Test Equipment Tensile Strength Tester
Brand: lixian
Price: 1 USD

Wholesale ASTM F88 ASTM F904 Tensile Test Equipment Tensile Strength Tester from china suppliers

Brand Name : lixian

Model Number : HZ-1007E

Certification : CE/ISO/ASTM/ROSH

Place of Origin : China

MOQ : 1

Price : negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7 days

Packaging Details : wood

Model : HZ-1007E

Accuracy : 1grade / 0.5 grade

Weight : About 160 Kg

Maximum Load : 50N, 100N, 200N, 500N, 1KN (optional )

Effective tensile space : 300mm

Measuring accuracy : the value ±1% / the value ±0.5%

Power supply : 220V 50Hz

Contact Now

Effective Tensile Space 300mm Label Peel Bond Strength Tensile Testing Machine Hz-1007e

Equipment summary:
It is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, it is mainly applied to test non-metallic and metallic material which the load is less than 1KN, it has the parameters, such as tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others..

Main Function

This Series machine can be applied to test lots of materials in tensile,compression, tear, Adhesive Tape peel ( 90 degrees and 180 degrees) and other small mechanical test(within 1KN).

Corresponding standard:
GB/T 16491, GB/T 1040, GB/T 8808, ASTM D3759, ASTM D3330, ASTM D882, ASTM F88, ASTM F904, ISO 37, JIS P8113.

Technical parameters:

Model Number	HZ-1007E
Accurate grade	1grade/0.5 grade
Material testing machine Maximum load	1KN
Effective measuring range	0.2%~100%/0.4%~100%
Measuring accuracy	the value ±1%/ the value ±0.5%
Tester resolution	Max load 1/200000, constant the resolution
Effective tensile stroke	300mm
Range of testing speed	0.01~500mm/min (special can be 0.01-1000mm/min)

①. Single test, 10-point statistics manually and automatically calculate its average and break values;
②. Multi-unit automatically exchange such as kgf, Lbf, N, ton
③. Function of free to take point;

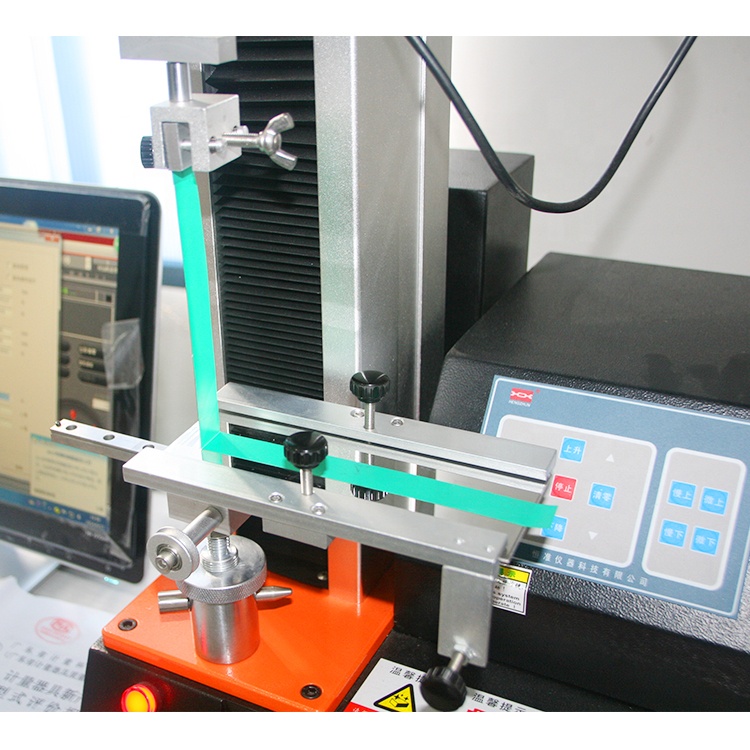

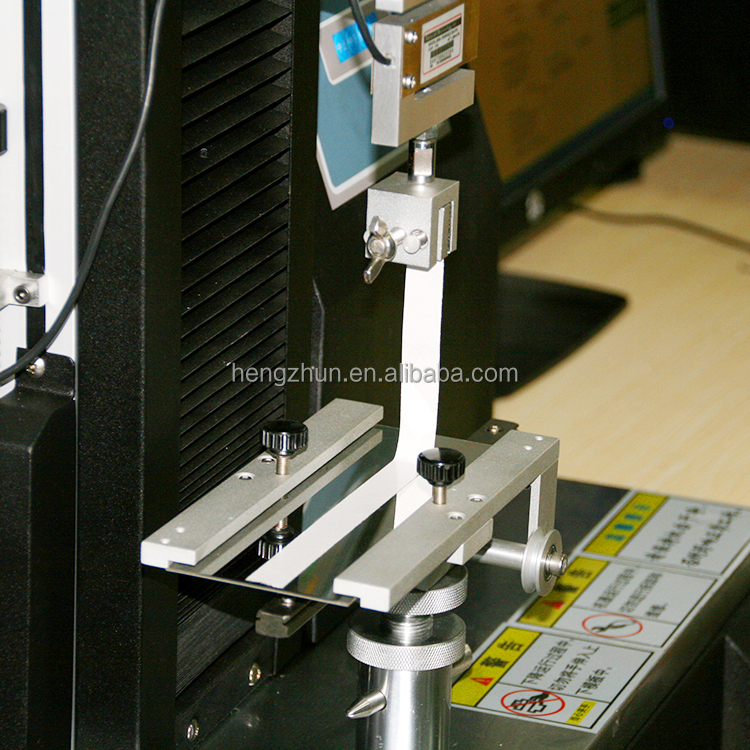

ASTM F88 ASTM F904 Tensile Test Equipment Tensile Strength Tester

UTM Fixture

Tensile machine grips is an indispensable part of the universal test machine. Different materials need different fixture, is also a significant factor whether the test can be carried out smoothly and the accuracy of the test results. Tension testing machine fixture is an indispensable part of electronic tension testing machine. Through the fixture clamping sample for the specimen after force, the size of the test force that the fixture can bear is a very significant index of the fixture. It determines the size of the fixture structure and the size of the labor intensity of the fixture operation. Tensile testing machine fixture in the structure of no fixed mode, according to different samples and test force size, in the structure of a great difference. The company provides tensile machine grips custom services to customers around the world and export UTM for 23 year.
